Introduction

Features

Improve the efficiency of day-to-day resource findings

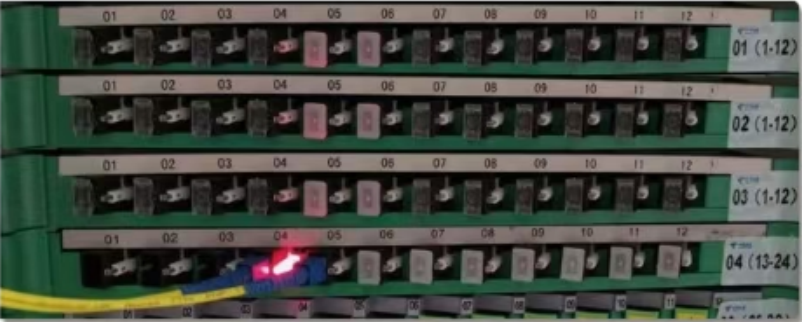

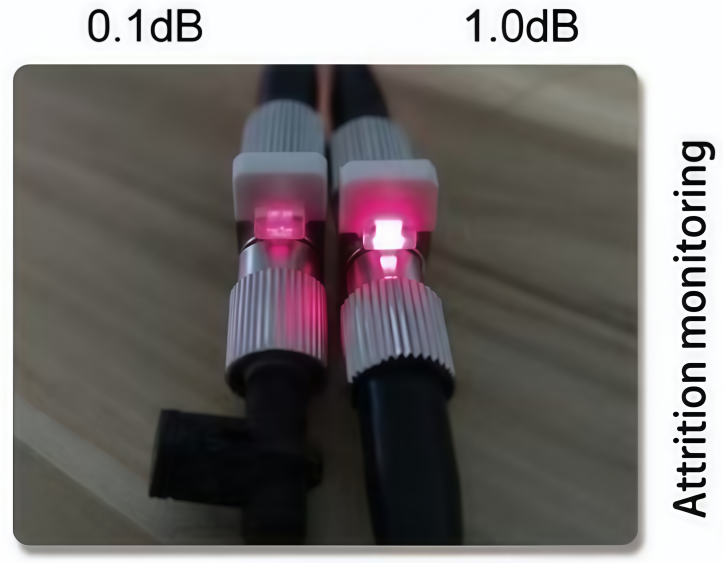

Visual inspection of fiber optic connection point quality

Judgment of the cleaning effect of the polluted optical port

Judgment of the cleaning effect of the end face of the connector

Improve the efficiency of troubleshooting, reduce network outages

Specifications

Sleeve material: Ceramics

Insertion: <0.2dB

Coupled persistence: <0.2dB, 200 times

Maximum loss: <0.3dB

Tensile resistance: >50N

Operating temperature: -20℃ to 75℃

Dimensions: OFC/A: 15x22x13.5   MFC/A: 15x22x9.4

Application

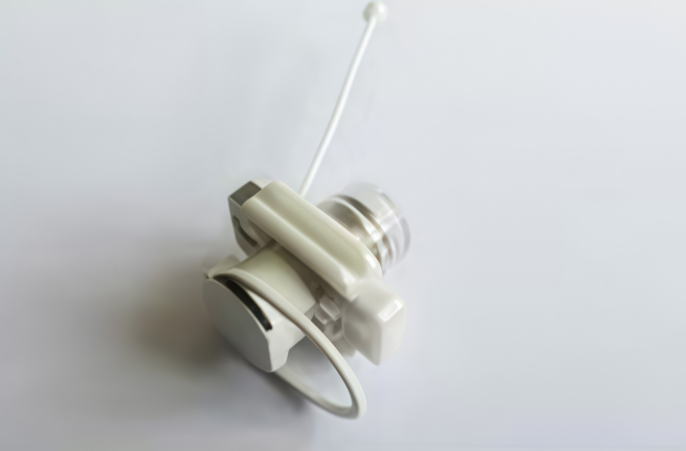

Optical monitor adaptor: ODF、Optical Splitter box

Optical monitor Socket jumper: Change polluted optical port for jump-on
