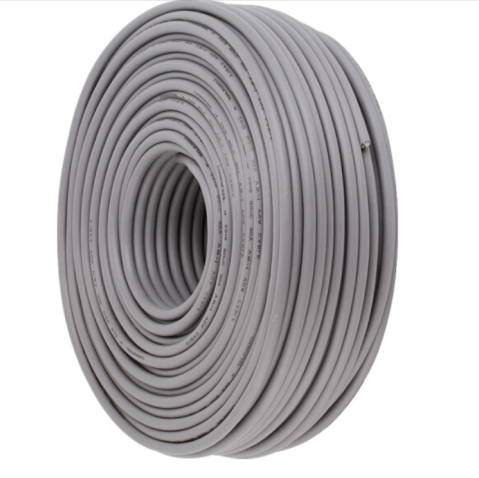

2M Coaxial Cable

2M cable is the common name for E1 interface coaxial cables in the communications industry

Quantity

Introduction

2M cable is the common name for E1 interface coaxial cables in the communications industry, with a transmission rate of 2.048 Mbit/s (2048 Kbps).

Standard: E1 (PCM primary rate), 32 time slots × 64 Kbps = 2048 Kbps
Impedance: Commonly 75Ω (unbalanced, with BNC/L9/CC4 connectors); 120Ω balanced type with RJ48 connectors is also available
Models: SYV 75-2-1, SYV 75-2-2, SYV 75-3-1, etc. (75 stands for impedance; 2/3 refer to wire diameter)
Structure: Inner conductor → Insulation layer → Shielding layer → Outer sheath

Core Applications

Transmission room: Connection between SDH/PTN equipment, DDF frames, switches and routers
Wireless base station: Link between BTS and BSC for 2G/3G/4G networks
Enterprise & government dedicated lines: Voice trunking, video conference and DDN leased lines
Power & finance industries: Relay protection, dispatching data network and ATM terminal links

Key Parameters

Rate: 2.048 Mbit/s (supporting 30 voice channels plus signaling & synchronization channels)
Transmission distance: Typically 100 to 200 meters for 75Ω coaxial cables; longer distance with larger wire diameter
Time slot allocation: Total 32×64 Kbps slots. TS0 for synchronization, TS16 for signaling, TS1-15 & TS17-31 for user services
